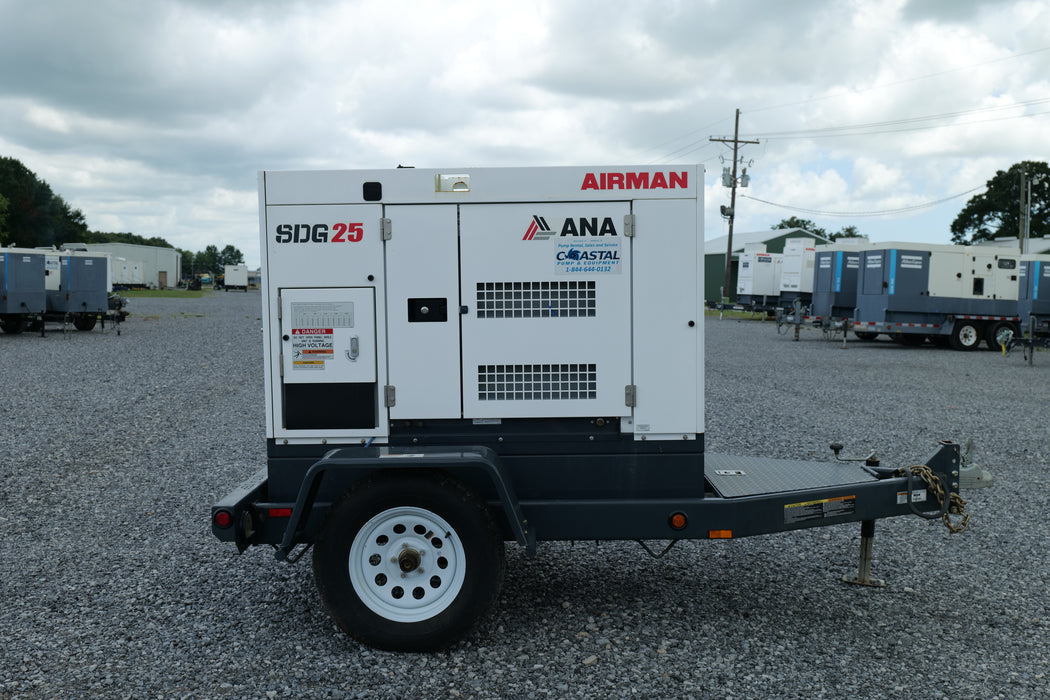

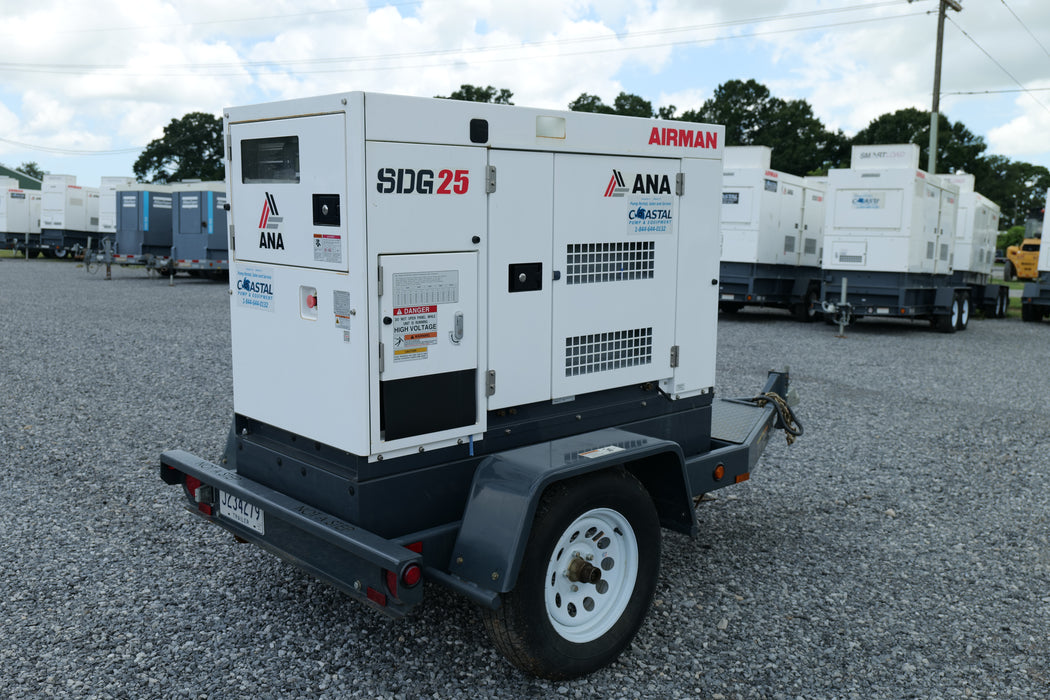

25 KVA DIESEL GENERATOR

25 KVA DIESEL GENERATOR

by Coastal Pumps

The 25 KVA Diesel Generator offers a versatile power solution with both three-phase and single-phase outputs. With a prime power rating of 20 kW/25 kVA and standby power rating of 22 kW/28 kVA, this generator is ideal for small-scale commercial and industrial operations. Powered by a 40 HP engine and equipped with a 72.5-gallon fuel tank, it ensures efficient fuel consumption at approximately 1.63 gallons per hour. Designed for ease of use, this generator features terminal board connections, bare wire terminals, and multiple convenience receptacles, making it a flexible option for various power needs.

Ready To Rent? Get Started Here!
Contact Us For Available Dates & Pricing
  • Frequency: 60 Hz
  • Prime Power Rating: 3Ø 20 kW / 25 kVA
  • Standby Power Rating: 3Ø 22 kW / 28 kVA
  • 3Ø Power Factor: 0.8
  • 3Ø Voltage in 480V Switch Position: 480Y/277 Volts
  • Amp Capacity @ 480V: 30 Amps
  • 3Ø Voltage in 240-208V Switch Position: 240YY / 139-208YY Volts
  • Amp Capacity @ 240V: 60 Amps
  • Amp Capacity @ 208V: 69 Amps
  • Prime Power Rating 1Ø: 16 kW / 16 kVA
  • 1Ø Power Factor: 1
  • 1Ø Voltage in 120-240V Switch Position: 240 / 120 Volts
  • Amp Capacity @ 240V: 54 Amps
  • Amp Capacity @ 120V: 54 x 2 Amps
  • Main Breaker - Shunt Trip: 63 Amps
  • Power Distribution - Terminal Board: 5 Wire (L1, L2, L3, N, Ground)
  • Maximum Terminal Cable Size: 350 MCM
  • Convenience Receptacles: 2 x NEMA 5-20R, 2 x 125/250V 50A CS6364
  • Maximum Sound Pressure Level @ 23' @ 75% Load: 67 dB(A)
  • Engine Horsepower: 40 HP
  • Fuel Tank Capacity: 51.5 gallons
  • Fuel Consumption: 1.63 gallons per hour
  • Efficient Fuel Usage: The 72.5-gallon fuel tank provides long operation times with a low consumption rate of 1.63 gallons per hour.
  • Sound Management: Operates at 67 dB(A) at 75% load, ensuring quieter operations suitable for noise-sensitive environments.
  • Power Versatility: Equipped with both three-phase and single-phase voltage outputs, making it adaptable to a wide range of power needs.
  • Safety Features: The GFCI protection ensures compliance with UL 943 requirements, protecting against open neutral and reverse phasing issues.
  • Convenient Power Distribution: Includes terminal board connections and convenience receptacles for easy access to power.
  • Daily: $125
  • Weekly: $375
  • Monthly: $1,125
