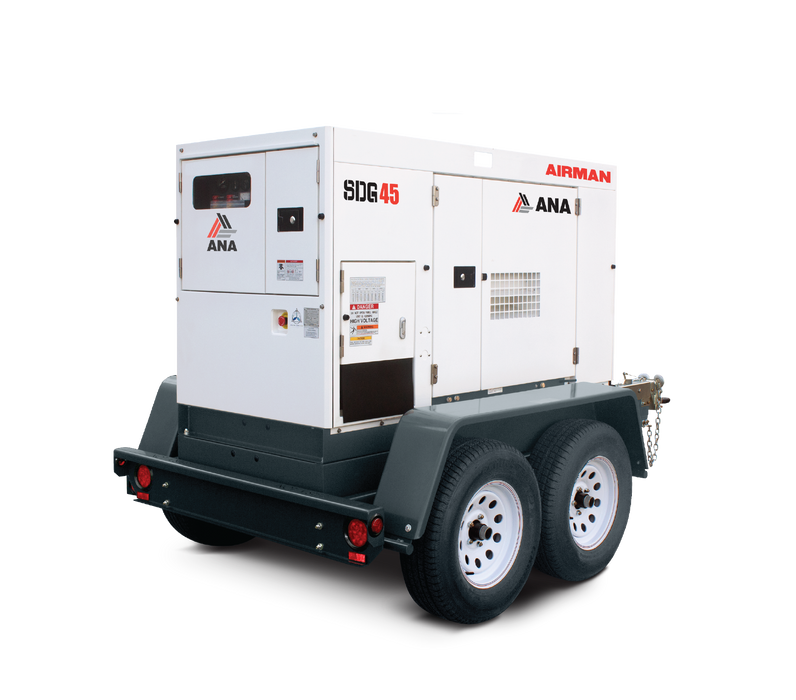

This generator operates at a frequency of 60 Hz and has a three-phase prime power rating of 36 kW / 45 kVA, with a standby power rating of 40 kW / 50 kVA and a power factor of 0.8. In the 480V switch position (series star with neutral), it provides 480Y/277 volts with an amp capacity of 54 amps. In the 240–208V switch position (parallel star with neutral), it delivers 240YY / 139–208YY volts, with an amp capacity of 108 amps at 240V and 125 amps at 208V. For single-phase operation, the unit has a prime power rating of 27 kW / 27 kVA with a power factor of 1, supplying 240 / 120 volts in the zig-zag switch position, with an amp capacity of 90 amps at 240V and 90 x 2 amps at 120V.

The generator is equipped with a 125-amp main breaker with shunt trip and features a power distribution terminal board with a 5-wire configuration (L1, L2, L3, N, ground) using bare wire terminals, supporting a maximum terminal cable size of 350 MCM. It includes convenience receptacles consisting of two NEMA 5-20R outlets and two 125/250V 50A CS6364 outlets. The unit operates at a maximum sound pressure level of 67 dB(A) at 23 feet under 75% load. It is powered by a 66 HP engine, has a fuel tank capacity of 72.5 gallons, and an approximate fuel consumption rate of 2.76 gallons per hour.
