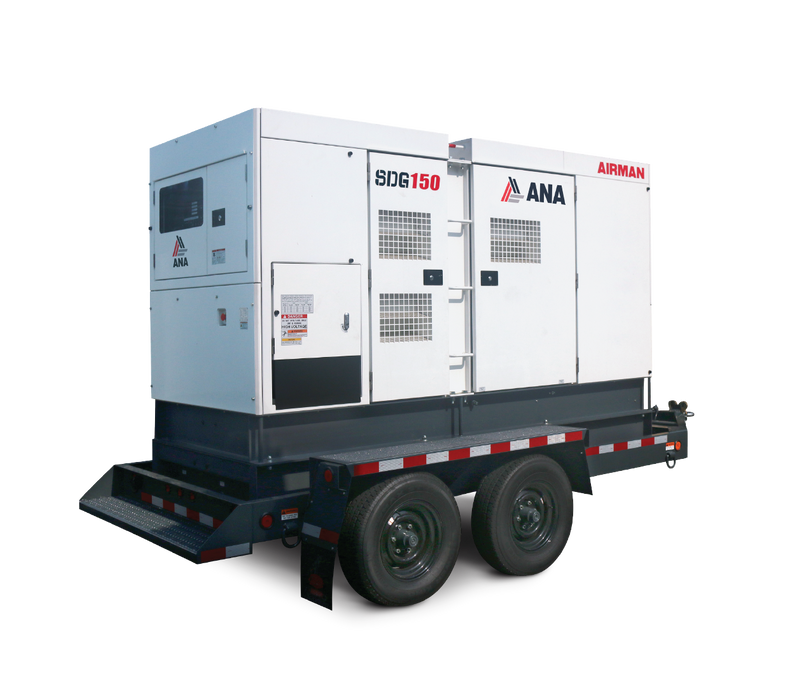

150 KVA DIESEL GENERATOR
Daily Rate: $400
Weekly Rate: $1,200
Monthly Rate: $3,600
- FREQUENCY 60 Hz
- PRIME POWER RATING 3Ø 120 kW/150 kVA
- STANDBY POWER RATING 3Ø 132 kW/165 kVA
- 3Ø POWER FACTOR 0.8
- 3Ø VOLTAGE IN 480V SWITCH POSITION (SERUES STAR W/ NEUTRAL) 480Y/277 VOLTS
- AMP CAPACITY @ 480V 180 AMPS
- 3Ø VOLTAGE IN 240-208V SWITCH POSITION (PARALLEL STAR W/ NEUTRAL) 240YY / 139-208YY VOLTS
- AMP CAPACITY @ 240V 361 AMPS
- AMP CAPACITY @ 208V 400 AMPS
- PRIME POWER RATING 1Ø 85 kW/ 85kVA
- 1Ø POWER FACTOR 1
- 1Ø VOLTAGE IN 120-240V SWITCH POSITION (ZIG-ZAG) 240 / 120 VOLTS
- AMP CAPACITY @ 240V 354 AMPS
- AMP CAPACITY @ 120V 354 x 2 AMPS
- MAIN BREAKER – SHUNT TRIP 400 AMPS
- POWER DISTRIBUTION – TERMINAL BOARD 5 WIRE (L1,L2,L3,N,GROUND)
- TERMINAL BOARD CONNECTIONS BARE WIRE TERMINALS
- MAXIMUM TERMINAL CABLE SIZE 350 MCM
- CONVENIENCE RECEPTACLES 2 x NEMA 5-20R & 2 x 125/250V 50A CS6364
- MAX. SOUND PRESSURE LEVEL (LPA) @ 23′ @ 75% LOAD 73 dB(A)
- ENGINE HP 201 HP
- FUEL TANK CAPACITY 240 gal
- FUEL CONSUMPTION ≈ 8.19 gal/h
