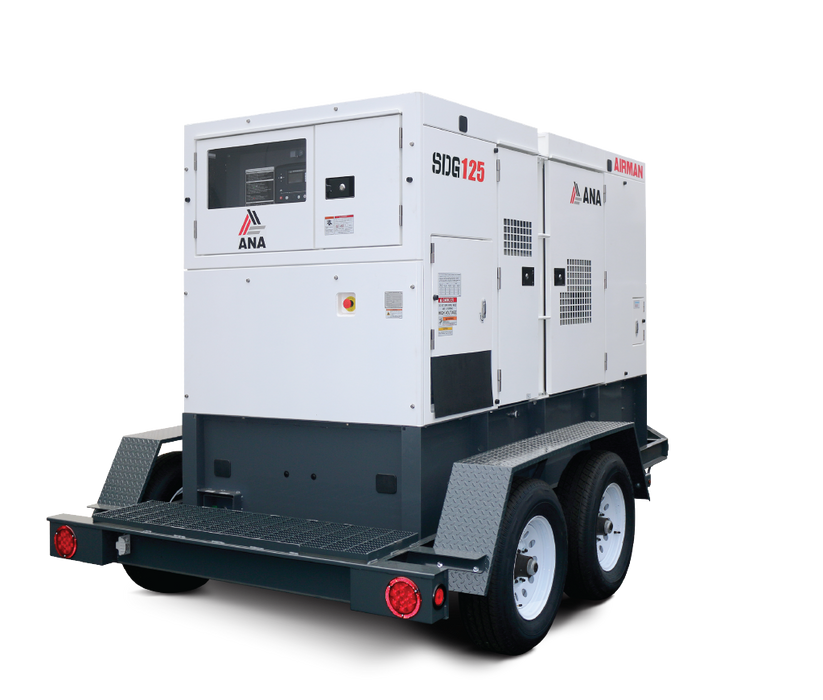

This generator operates at a frequency of 60 Hz and has a three-phase prime power rating of 100 kW / 125 kVA, with a standby power rating of 102 kW / 127 kVA and a power factor of 0.8. In the 480V switch position (series star with neutral), it delivers 480Y/277 volts with an amp capacity of 150 amps. In the 240–208V switch position (parallel star with neutral), it provides 240YY / 139–208YY volts, with an amp capacity of 300 amps at both 240V and 208V. For single-phase operation, the unit has a prime power rating of 65 kW / 65 kVA with a power factor of 1, delivering 240 / 120 volts in the zig-zag switch position, with an amp capacity of 270 amps at 240V and 270 x 2 amps at 120V.

The generator is equipped with a 400-amp main breaker with shunt trip and features a power distribution terminal board with a 5-wire configuration (L1, L2, L3, N, ground) using bare wire terminals, supporting a maximum terminal cable size of 350 MCM. It includes convenience receptacles consisting of two NEMA 5-20R outlets and three 125/250V 50A CS6364 outlets. The unit operates at a maximum sound pressure level of 73 dB(A) at 23 feet under 75% load. It is powered by a 172 HP engine, has a fuel tank capacity of 166 gallons, and an approximate fuel consumption rate of 7.06 gallons per hour.
